Datasheet Download 👉🏼 Wifi DATASHEET-WAF21918-TA-Page 1-4

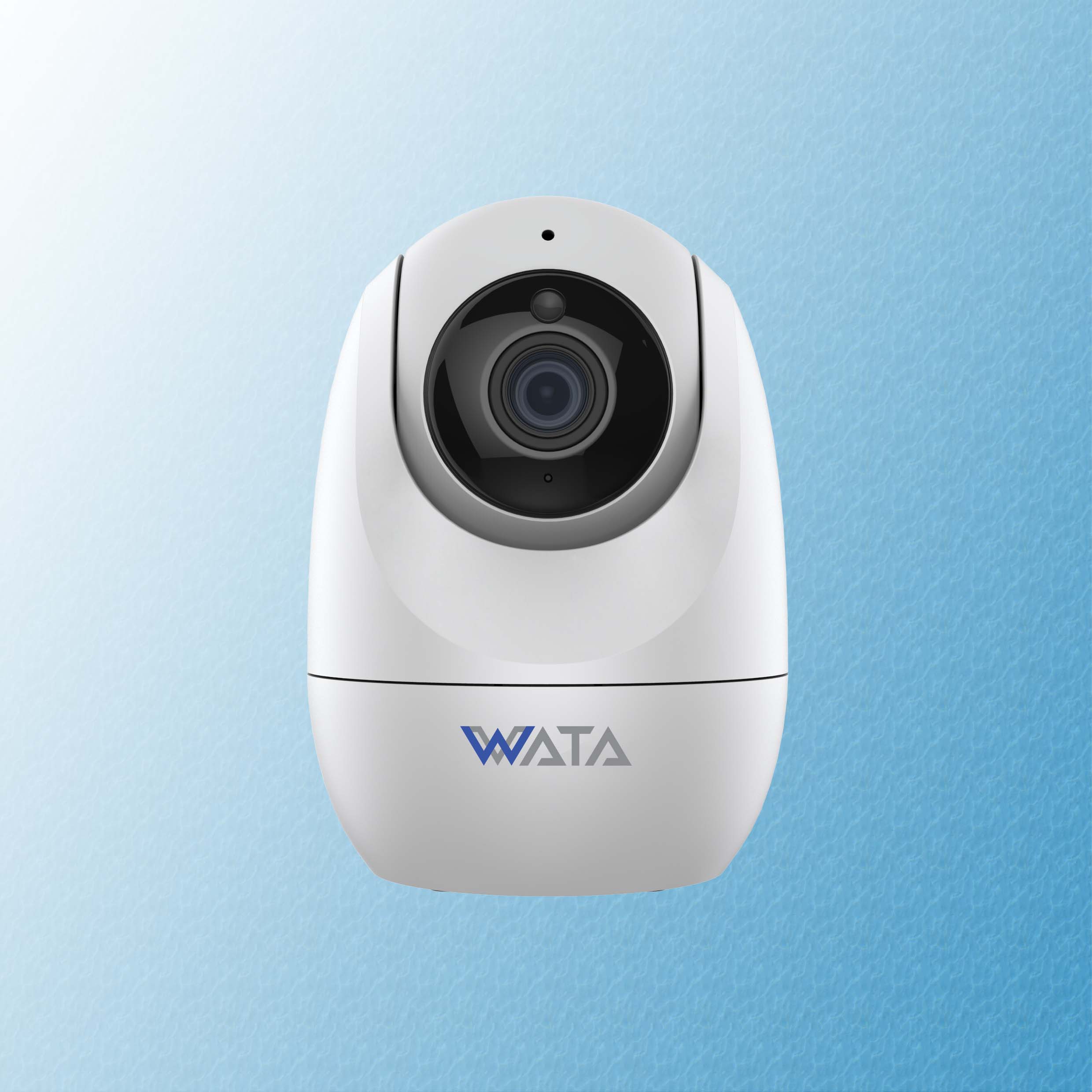

The WAF21918-TA is a 2MP True Color Fixed WiFi PT Camera designed for reliable and efficient surveillance with the added convenience of wireless connectivity. It features a 1/3″ CMOS image sensor, delivering high-quality images with a resolution of 2 megapixels. The camera performs well in low-light conditions, offering a minimum illumination of 0.02 Lux in color mode with AGC on and 0 Lux in black-and-white mode with IR illumination. It supports advanced video compression standards, including S+265, H.265, and H.264, ensuring efficient bandwidth usage and storage.
The camera is equipped with a fixed focal lens of 4mm, providing a 75° horizontal field of view. It includes a day/night IR-cut filter with auto-switching (ICR) and features Digital Wide Dynamic Range (DWDR) for clear imaging in challenging lighting conditions. The built-in Smart IR technology ensures an effective IR range of up to 20 meters, with four IR LEDs and one white LED for additional illumination up to 10 meters.
Key functionalities include motion detection, mask alarm, and privacy masking, enhancing security and monitoring capabilities. The camera supports microSD/microSDHC/microSDXC cards for onboard storage, with a capacity of up to 512 GB. It is housed in a durable plastic casing, making it lightweight and suitable for various indoor and outdoor applications.
Network connectivity is facilitated through a 10/100 Mbps self-adaptive Ethernet port and WiFi support, adhering to IEEE 802.11b/g/n standards with a frequency range of 2.4 GHz to 2.4835 GHz. The camera supports various protocols such as HTTP, TCP/IP, and ONVIF Profile S/T/G for seamless integration with existing surveillance systems. It also features Power over Ethernet (PoE) support, simplifying installation and reducing cabling requirements.
The WAF21918-TA is designed for versatile deployment, with an operating temperature range of -10°C to 45°C and humidity tolerance up to 95% (non-condensing). It includes multiple alarm triggers and linkage methods, such as motion detection, disk full, and IP address conflict, ensuring comprehensive monitoring and response capabilities.
Overall, the WAF21918-TA is a reliable and feature-rich network camera, ideal for applications requiring high-quality imaging, robust performance, and advanced security features with the added convenience of wireless connectivity.
