WAF4074-TA

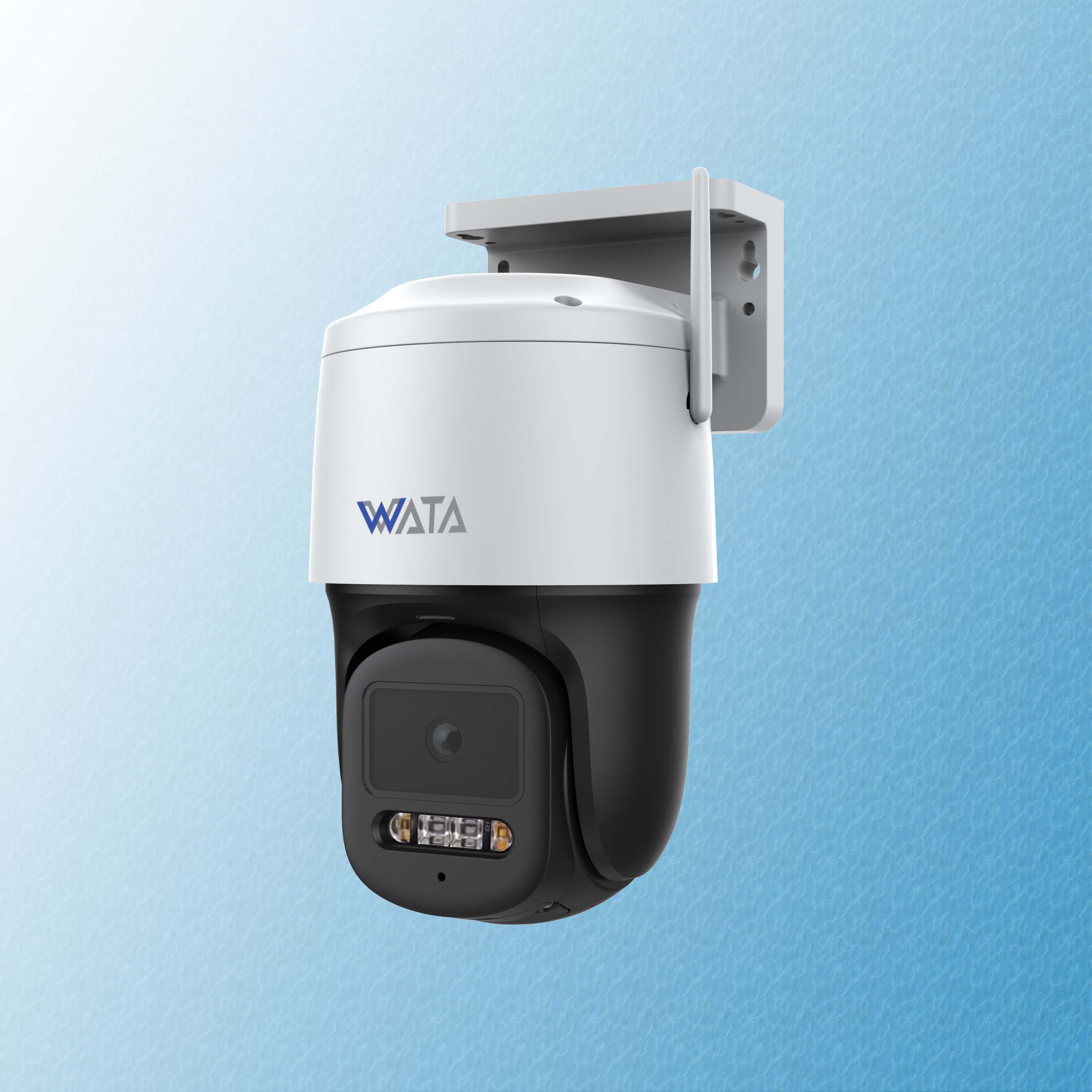

The WAF4074-TA is a 3MP True Color Fixed WiFi PT Camera designed for high-quality surveillance with the added flexibility of wireless connectivity. It features a 1/2.8″ CMOS image sensor, delivering sharp and detailed images with a resolution of 3 megapixels. The camera excels in low-light conditions, offering a minimum illumination of 0.002 Lux in color mode with AGC on and 0 Lux in black-and-white mode with IR illumination. It supports advanced video compression standards, including S+265, H.265, and H.264, ensuring efficient bandwidth usage and storage.

The camera is equipped with a fixed focal lens of 4mm, providing an 87.7° horizontal field of view. It includes a day/night IR-cut filter with auto-switching (ICR) and features Digital Wide Dynamic Range (DWDR) for clear imaging in challenging lighting conditions. The built-in Smart IR technology ensures an effective IR range of up to 50 meters, with two IR LEDs and two white LEDs for additional illumination up to 15 meters.

Key functionalities include motion detection, mask alarm, and privacy masking, enhancing security and monitoring capabilities. The camera supports microSD/microSDHC/microSDXC cards for onboard storage, with a capacity of up to 512 GB. It is housed in a durable metal casing, offering water and dust resistance with an IP66 rating, making it suitable for outdoor use in harsh environments.

Network connectivity is facilitated through a 10/100 Mbps self-adaptive Ethernet port and WiFi support, adhering to IEEE 802.11b/g/n standards with a frequency range of 2.4 GHz to 2.4835 GHz. The camera supports various protocols such as HTTP, TCP/IP, and ONVIF Profile S/I/G for seamless integration with existing surveillance systems. It also features Power over Ethernet (PoE) support, simplifying installation and reducing cabling requirements.

The WAF4074-TA is designed for versatile deployment, with an operating temperature range of -30°C to 60°C and humidity tolerance up to 95% (non-condensing). It includes multiple alarm triggers and linkage methods, such as motion detection, disk full, and IP address conflict, ensuring comprehensive monitoring and response capabilities.

Overall, the WAF4074-TA is a reliable and feature-rich network camera, ideal for applications requiring high-resolution imaging, robust performance, and advanced security features with the added convenience of wireless connectivity.
