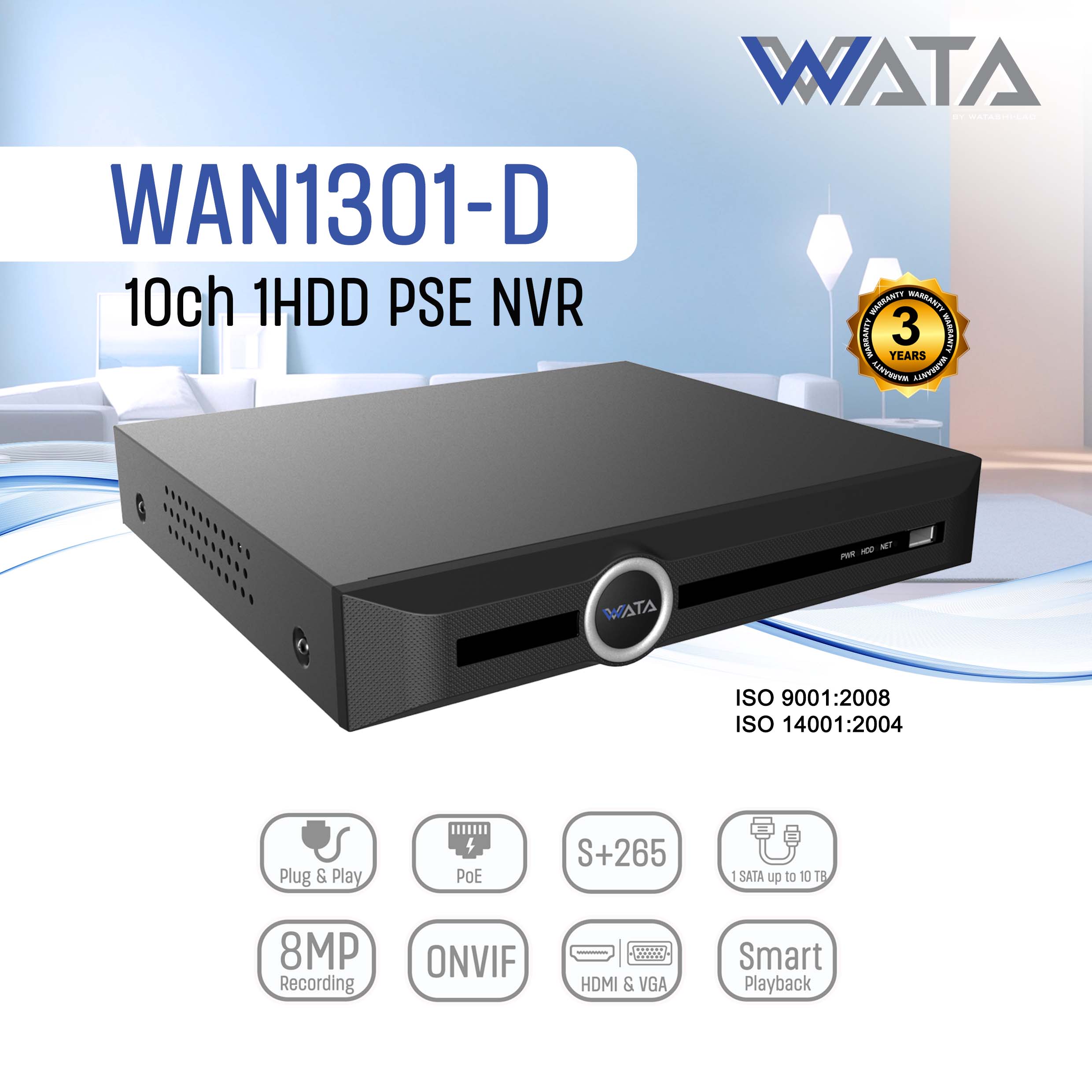

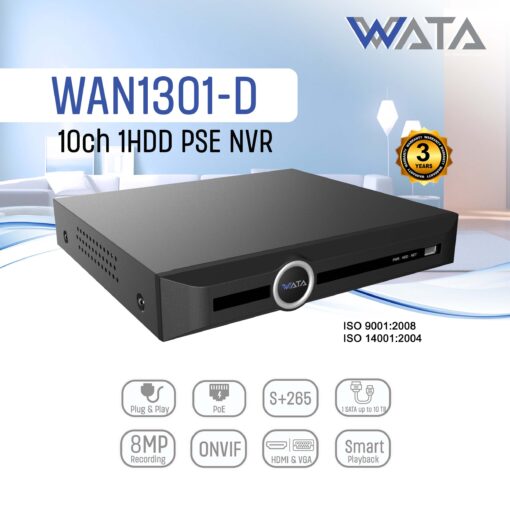

WAN1301-D
₭1.00
KEY FEATURES
Video/Recording:
- Supports multiple video formats: S+265, H.265, and H.264.
- High-resolution support: Up to 8MP resolution recording and playback.
- Third-party camera compatibility: Connectable to network cameras from other vendors.
- Smart camera integration: Works with WATA smart IP cameras, enabling VCA (Video Content Analysis) alarms and recording.
- VCA support: Includes VCA detection alarms.
Display/Output:
- Dual video outputs: Simultaneous HDMI and VGA output.
- 4K HDMI support: HDMI output supports resolutions up to 4K.
Storage:
- Single HDD support: 1 SATA interface for up to 10TB HDD.
- Efficient compression: S+265 compression reduces storage needs by up to 75%.
Network:
- PoE ports: 8 PoE (Power over Ethernet) ports for easy camera connection.
- Gigabit Ethernet: 1x RJ45 10/100 Mbps network interface.
- Web access: Supports plug-in free browsing via Web6, enabling video preview on any browser.
Management & Other:
- Centralized management: Manages IP cameras with features like configuration, import/export, real-time info, and upgrades.
- Cloud upgrade: Supports cloud-based firmware updates.
100 in stock
Datasheet Download 👉🏼 NVR DATASHEET-WAN1301-D-Page 1-4

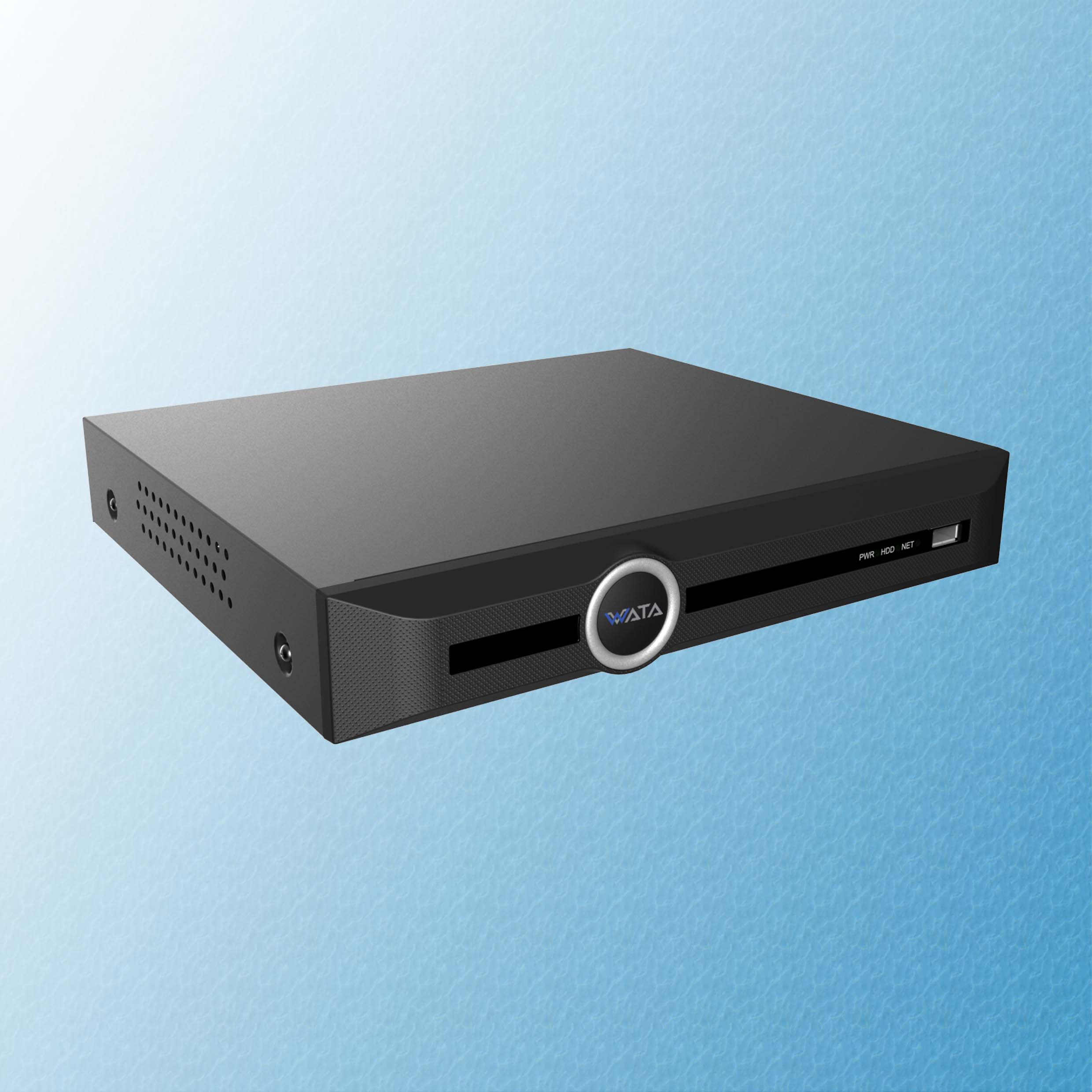

The WAN1301-D is a 10-channel 1HDD PSE Network Video Recorder (NVR) designed for efficient video surveillance and management. It supports high-definition video input with resolutions up to 8MP and is compatible with S+265, H.265, and H.264 video formats, which significantly reduce storage space and costs by up to 75%. The NVR can connect to third-party network cameras, allowing for live view, storage, and playback of video footage.
The NVR features simultaneous HDMI and VGA outputs, with HDMI supporting up to 4K resolution, providing high-quality video display options. It includes one SATA interface, supporting up to 10TB of storage on a single HDD, ensuring ample space for video recordings. The device also supports Power over Ethernet (PoE) with eight RJ45 self-adaptive 10/100 Mbps network interfaces, simplifying installation and reducing cabling requirements.
The WAN1301-D offers various applications, including centralized management of IP cameras, configuration, information import/export, real-time information display, and upgrades. It supports VCA (Video Content Analysis) detection alarms and can connect to smart IP cameras from WATA for recording, playback, and backup of VCA alarms. The NVR also supports plug-in-free browsing on all web browsers, allowing for easy video preview and management.
Network connectivity is facilitated through a 10/100 Mbps self-adaptive Ethernet port, supporting a wide range of protocols such as HTTP, HTTPS, TCP/IP, and ONVIF Profile S/G. The NVR is compatible with both Android and iOS mobile devices, enabling remote access and monitoring. It also supports third-party camera access via ONVIF and RTSP, ensuring seamless integration with existing surveillance systems.
The NVR is designed for versatile deployment, with an operating temperature range of -10°C to +55°C and humidity tolerance of 10% to 90% RH. It features a user-friendly interface with support for multiple languages, including English, Chinese, Spanish, and more, making it accessible to a global user base.
Overall, the WAN1301-D is a powerful and feature-rich NVR, ideal for applications requiring efficient video storage, advanced analytics, and flexible connectivity options. Its robust performance and comprehensive feature set make it a reliable choice for modern surveillance systems.
