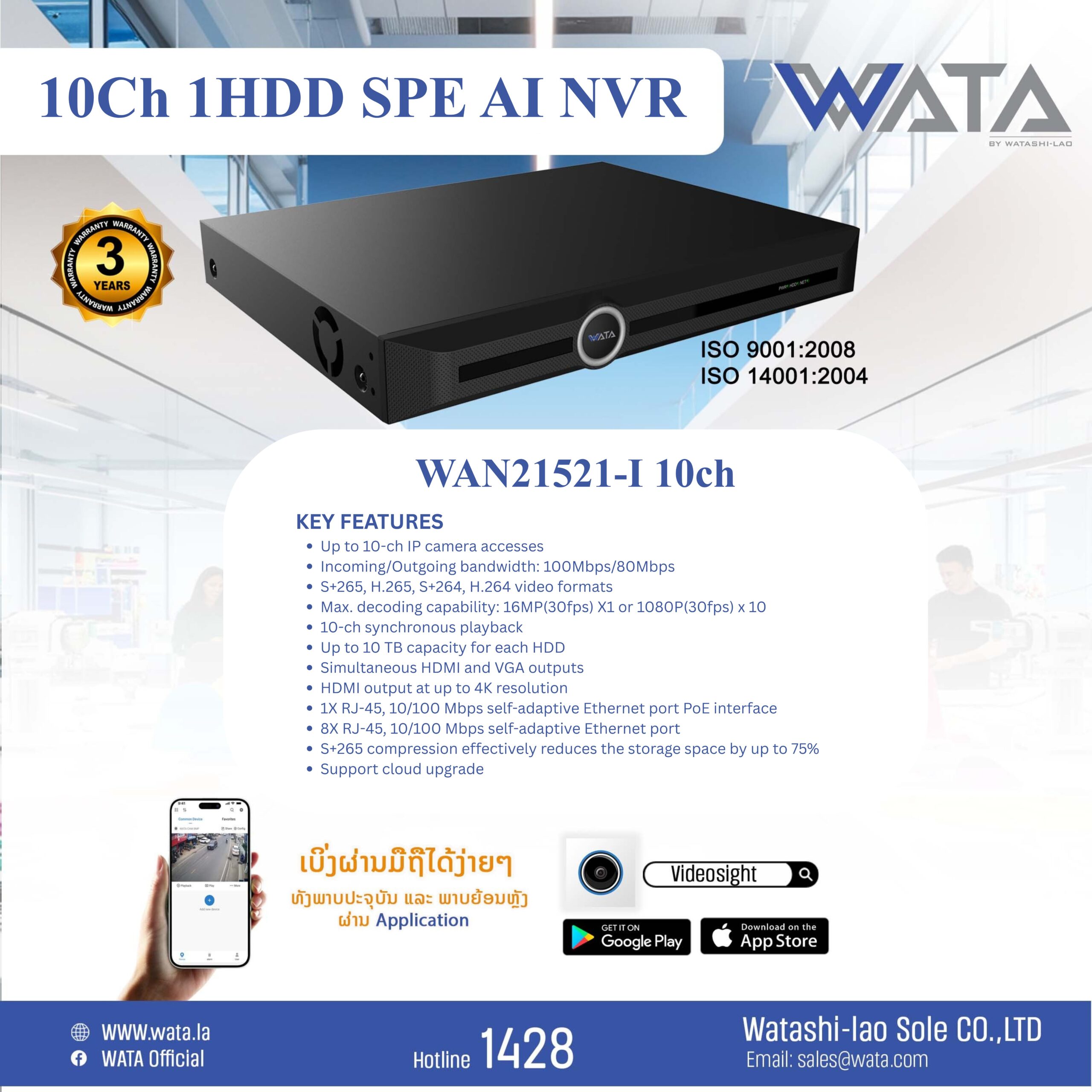

WAN21521-I

The WAN21521-1 is a 10-channel AI Network Video Recorder (NVR) designed to support up to 10 IP camera accesses. It offers a combined incoming and outgoing bandwidth of 100Mbps and 80Mbps, respectively, and supports multiple video formats, including S+265, H.265, S+264, and H.264. The unit features S+265 compression, which can effectively reduce storage space requirements by up to 75%. For storage, it accommodates one SATA HDD with a capacity of up to 10TB.

The NVR provides high-quality video output with simultaneous HDMI and VGA support, with the HDMI output capable of resolutions up to 4K. It includes 10 channels of synchronous playback and offers 10-channel live view display capabilities. The device is equipped with a comprehensive set of external ports, including 8 RJ-45 PoE interfaces (self-adaptive 10/100 Mbps) with a total PoE gross power of 70W, one RJ-45 LAN interface, two USB 2.0 ports, and audio input/output connections.

Intelligent features include advanced VCA detection, such as tripwire, perimeter, object abandoned/missing, and face detection when supported by the connected cameras. Additionally, the NVR provides extensive exception alarms, including alerts for network disconnection, disk full, illegal access, and abnormal disk temperature. The system is built to operate in environments ranging from -10°C to +55°C and supports a variety of network protocols, including HTTPS, RTSP, and P2P, ensuring broad system compatibility.
