WAT53264-LI

PDF Download 👉🏼 DATASHEET-WAT53264-LI.pdf

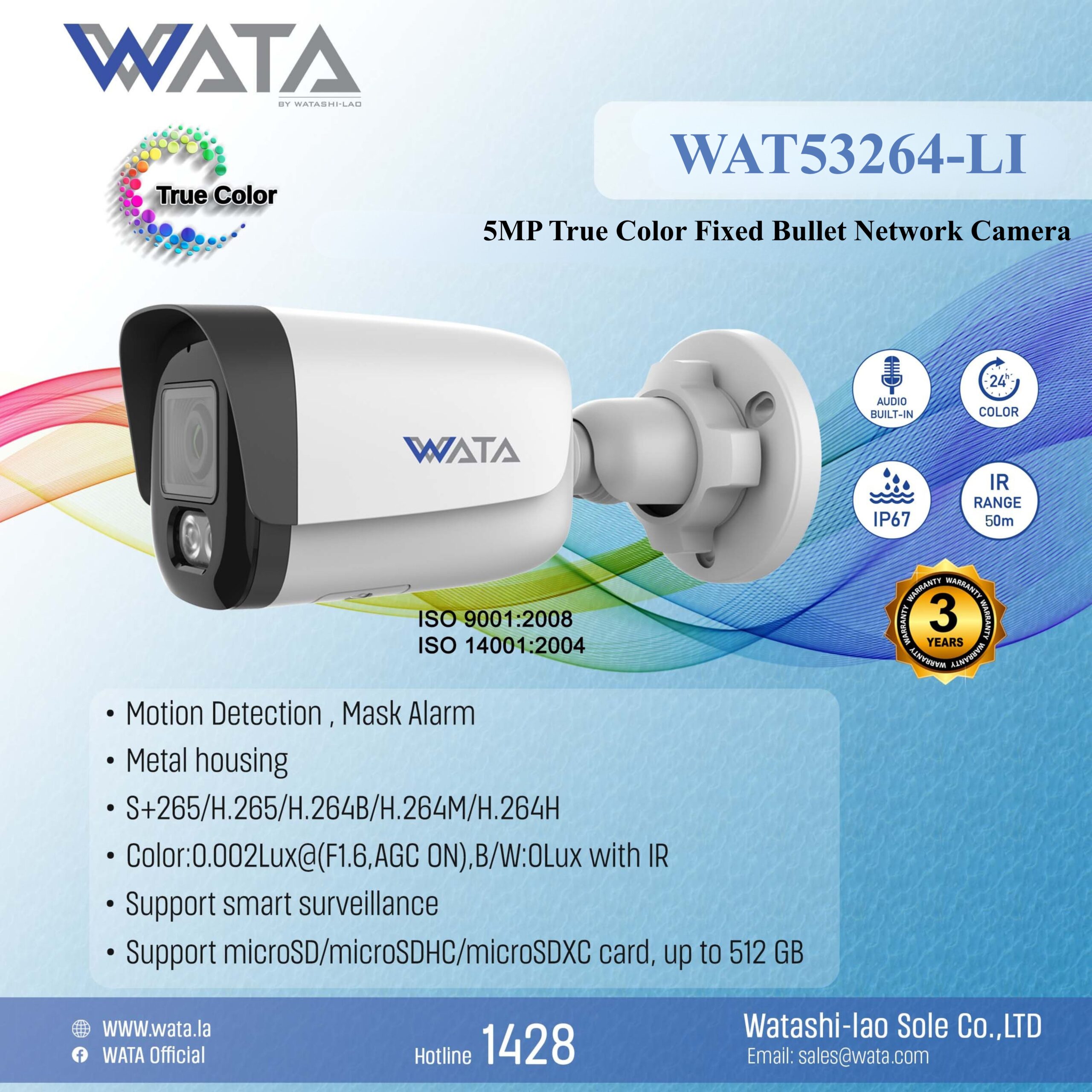

The WAT53264-LI is a 5MP TrueColor Fixed Bullet Network Camera designed for robust performance in various environments. It features a durable metal housing with an IP67 rating, ensuring protection against harsh conditions with an operating temperature range of -30°C to 60°C. The camera is equipped with a 1/2.8″ CMOS sensor, a 4mm fixed focal lens with an F1.6 aperture, and provides a wide field of view of 87.7° (H) x 46.8° (V) x 98.6° (D).

Advanced surveillance capabilities include human and vehicle classification, as well as analytics such as tripwire and perimeter detection. For low-light performance, the camera offers IR illumination up to 50m and white light illumination up to 15m, with a minimum illumination of 0.02Lux in color mode and 0Lux in black and white when using IR. It supports various video compression standards like S+265, H.265, and H.264, and provides audio input via a built-in microphone.

Connectivity and storage options are flexible, featuring an RJ-45 10/100 Mbps Ethernet port and a microSD/microSDHC/microSDXC card slot that supports up to 512GB. The camera is compatible with multiple network protocols, including HTTP, HTTPS, TCP/IP, and RTSP, and integrates with systems supporting ONVIF Profile S/T/G and CGI. It can be powered via DC12V or PoE (IEEE 802.3af).
